CPT-AS

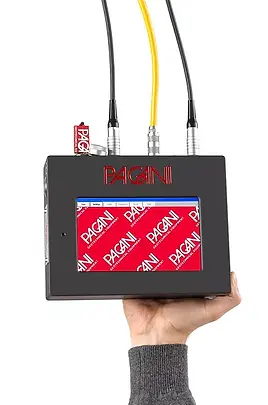

Compact Data Logger to perform in-field CPTu tests using an easy, fast, intuitive tool & robust unit with a proven history of reliability.
Compact and Practical
Extremely compact and robust acquisition system, transported in a practical case and easily installed onto the penetrometer.
​Width: 220 mm
Height: 190 mm
Depth: 60 mm
Always-guaranteed functionality
Speed during tests
The CPT-AS is a fast and intuitive data-logger, capable of acquiring CPTu Test and Dissipation Test data through a few guided steps and without the need for computers and bulky wiring. Data can then be downloaded using a simple USB drive.
The Data-Logger is resistant to rain and extreme temperatures, while the touch-screen monitor offers excellent visibility, even in direct sunlight.
Operating temperature: -4 °F - 158 °F (-20 ÷ +70 °C)
Technical Information
Technical specifications:
Supply voltage: 9V DC - 18V DC
Typical (maximum) current draw: 0.5 A (1 A)
Operating temperature: -4 °F - 158 °F (-20 ÷ +70 °C)
External connections:
Power supply: 12V DC
Encoder input: Encoder line-driver
USB ports: Encoder line-driver
Piezocone input: RS485 serial
Dimensions:
Length: 8.66" (220mm)
Height: 7.48" (190mm)
Depth: 2.36" (60mm)
