Static and/or Dynamic Penetrometric tests from a single rig.

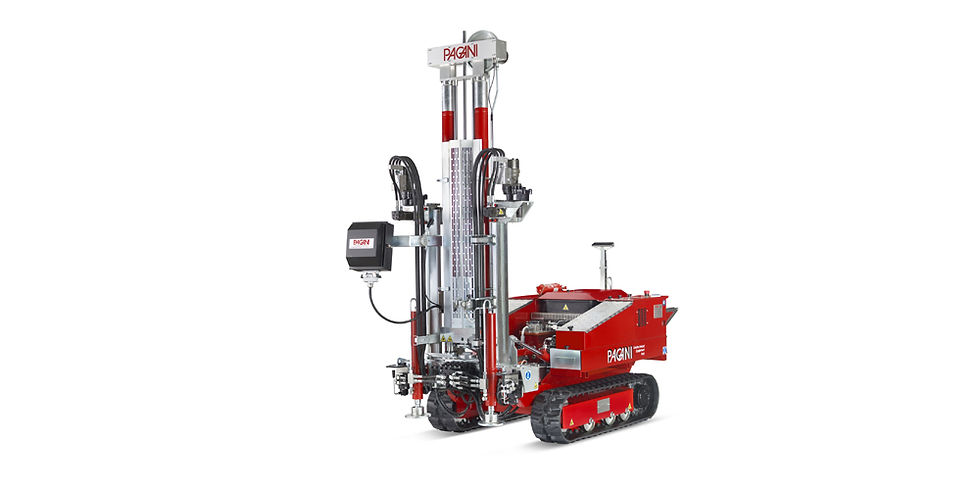

The world renowned Pagani Geotechnical TG 63-150 Penetrometer can be configured on request to perform Static Penetrometric Tests (CPT), or both static (CPT) and continuous Dynamic (DP) Penetrometric Tests.
With regards to the Dynamic Tests (depending on the most commonly tested soil types) the penetrometer can be equipped with different hammer systems (DPSH super heavy, DPH heavy, or DPM medium) depending on your specific needs.
It also allows disturbed samples to be taken, as well as undisturbed samples which permit better stratigraphic interpretation.
The TG 63-150 rig sets itself apart with its high energy efficiency.
Approximately 78% of the impact energy is transmitted to the rods. It guarantees perfect verticality when driving in the rods. It reduces testing times by allowing the rods and their liner tubes to be driven into the ground at the same time. It makes removal of the entire rod possible. It features an anchoring system installed on the mast which allows for machine positioning times to be significantly reduced, along with the stress when driving the test equipment into the ground.
The Pagani Geotechnical TG 63-150 Penetrometer features a hydraulic tracked carriage which offers excellent manoeuvrability, even on uneven terrain. It can even be positioned on very steep slopes thanks to its three stabilisers, and the mast can be tilted continuously, meaning it is always perfectly vertical.
The Pagani TG63-150 is a highly flexible machine, which can be used by one single operator.
Static Penetrometric Tests can be performed with a mechanical bit (Begemann) and manual acquisition (CPT), or using different (optional) bits such as the Piezocone (CPTU) or Seismic Piezocone (S-CPTU) which offer a more reliable stratigraphic interpretation and determination of the profile of the speed of the shear waves (Vs).
The static/dynamic method allows information to be obtained along verticals composed of terrain with different mechanical characteristics (from very soft to very hard and compact), while it is possible to overcome particularly hard strata thanks to a Rotary Head which allows for pre-drilling (optional).
The Pagani Geotechnical TG63-150 is arguably the best-selling compact CPT Rig in the world with the best value for money.

Technical Info:
Tests: CPTm, CPTu, DPSH (standard), DPH (optional), DPM (optional)
Length: 97.04"
Width: 43.7"
Height (mast up): 161.7"
Weight (gas version): 2425 lbs
Weight (diesel version): 2535 lbs
Max Thrust Capacity: 33721 lbs
Max Extraction Capacity: 35969 lbs
Speed of Test: 0,065 foot/s
Carriage: Hydrostatic operating tracks with planetary reduction gear and negative brake.
Carriage Speed: 1,24 miles per hour
Max Forward Slope: 25%
Max Lateral Slope: 10%
Anchoring System: 2, one for each side of the rig with a gear motor, Torque 13887 inch-pound
Anchoring Rods: Modular helical rod
Stabilisers: 3, with hydraulic action with articulated feet

Petrol / Gas Engine:
2 cylinders, V 60 degree
23 Hp
Air Cooling

Diesel Engine:
2 inline cylinders
15,8 Hp
Liquid Cooling

Certifications :
The equipment is CE Certified and compliant.
As shown by the certifications Pagani Geotechnical equipment complies with CE and USA CFR (title 29 S1910 Subpart 0).
